Rail Shoulder

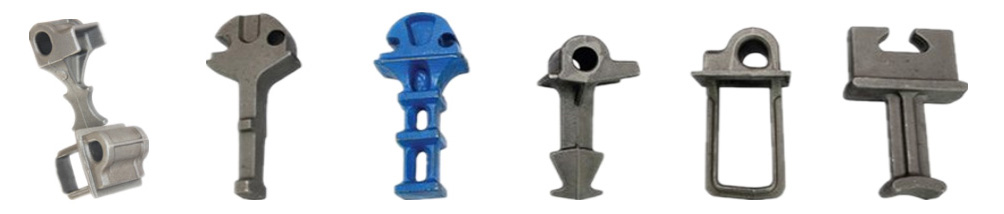

Rail Shoulders (Cast-in Rail Shoulders)

Application	UIC54	UIC60	115RE, ,50kg Rail, 60kg Rail, BS80lbs, BS100lbs, ect.
Raw Material	QT500-7	QT450-10	QT400-15
Standard Reference	GB 1348-88	GB 1348-88	GB 1348-89
Chemical composition(%)	C:3.60-3.80	C:3.40-3.90	C:3.50-3.60
	C:3.60-3.80	Mn:0.2-0.5	Mn:≤0.5
	Si:2.50-2.90	Si:2.70-3.00	Si:3.0-3.2
	P:≤0.08	P:≤0.07	P:≤0.07
	S:≤0.025	S:≤0.03	S:≤0.02
Tensile Strength	≥500 Mpa	≥450 Mpa	≥400 Mpa
Yield Strength	≥320 Mpa	≥310 Mpa	≥250 Mpa
Elongation(%)	≥7	≥10	≥15
Hardness	170~230HB	160~210HB	130~180HB
Metallographic organization	Ferrite + Pearlite	Graphite + Ferrite + Pearlite	Ferrite
Surface	Plain , Hot Dip Galvanized,Sandblasting
Customization is available !

Weld-on Shoulders

Applications: 88Lbs,50Kg Rail,60Kg Rail,115Re,UIC60

Raw Mateiral: Mild Steel , Cast Iron ,Alloy Steel

Surface Treatment : ,Plain , Hot Dip Galvanized , Sandblasting

Production Engineering: Forging , Casting.

Customization is available !

Rail Shoulders

Rail shoulder is cast in the concrete rail ties to fix the elastic rail clips. There are two types of rail shoulders available, the cast-in shoulder and the weld-on shoulder, both of which are used for the fixing of elastic rail clips.

A) Cast-in rail shoulder

The casting shoulders as the embedded part of the rail way fastening system are pressed in concrete sleeper and work together with the E clip to fasten the rail. The cast in shoulder is made by casting from iron, such as, GB/T 1348-1988, NF EN 1563(1997), ISO1038, DIN 1693, JIS G5502 (2001), KS D 4302, GOST 7293(1985) or BS EN 1563(1997).

B) Weld-on shoulder

The weld-on shoulder is used at the typical position of rail where the rail shoulder is weld on flat steel plate rather than the standard tie plate. The weld-on shoulder is produced by hot forging, according to AREA standard. The materials for weld-on shoulders production can be low or medium carbon steel, based on the customer’s specific requirements.
